OKM eXp 4500 Light (2014-2019)

May 20, 2020
This product has been updated. View the current product version: OKM eXp 4500 Light
OKM eXp 4500 Light (2014-2019)
  • All-arounder: OKM's detector for multifunctional subsurface detecting - with limited features
  • Depth: Customers found treasures up to 20-25 meters deep
  • Use cases: treasure hunting, natural gold prospection, cavity detection
  • Operating modes: Ground Scan, Pinpointer, Mineral Scan
  • Detectable objects: treasure chests, cavities, tunnels

  • 24
  • 23
  • 22
  • 21
  • 20
  • 19
  • 18
  • 17
  • 16
  • 15
  • 14
  • 13
  • 12
  • 11
  • 10
  • 9
  • 8
  • 7
  • 6
  • 5
  • 4
  • 3
  • 2
  • 1

Introduction of ground scanner OKM eXp 4500:

YouTube Video

How to use the ground scanner eXp 4500:

YouTube Video
3D Visualization
3D Visualization
3D Ground Scan
3D Ground Scan
Exchangeable probes
Exchangeable probes
GST / EMSR
GST / EMSR
Internal memory
Internal memory
Live Sound
Live Sound
Mineral Scan
Mineral Scan
Multilingual operation
Multilingual operation
Rechargeable high-capacity battery
Rechargeable high-capacity battery
Speaker
Speaker

3D ground scanner for treasure hunters and gold seekers

Are you tired of finding only small objects near the surface? Do you want to detect the real buried treasures which lie deeper than a normal metal detector can detect? OKM introduces the multifunctional sub-surface imaging detector and ground scanner eXp 4500. Developed for treasure hunters as well as prospectors, the eXp 4500 allows to find those buried treasures.

Unlike other ground scanners and imaging detectors, the eXp 4500 is truly unique. Calling the eXp 4500 a simple detector is not justified, due to its multitude of built-in functions, the eXp 4500 can locate buried items, ancient artifacts, lost treasures and naturally occurring mineralization like gold and silver at depths well beyond that of a common metal detector.

Measurement data in high resolution

The measurement unit of the eXp 4500 includes a PC-module with which data is displayed immediately on the full color screen. Measured data is stored in the internal memory and can be transferred later to a computer. Transferring measured values to a computer allows the operator to evaluate and compare all stored data. In doing this the operator can determine depth, size and position of targets using the professional Visualizer 3D software.

OKM eXp 4500 Light (2014-2019)



Characteristics of the eXp 4500



Applications of the eXp 4500 ground scanner

The eXp 4500 ground scanner is a high performance metal detecting device which is specially designed for the following applications:

With the Super Sensor, the eXp 4500 ground scanner can also be used in highly mineralized areas for treasure hunting and prospecting.



Multi-purpose Super Sensor

The functionality of the eXp 4500 metal detector is only one key point that makes it a unique treasure hunting unit. The Super Sensor is tuned and optimized for its own purpose and function: for high resolution ground scans, pinpointing and mineral detection



Operating modes of the eXp 4500 ground scanner and metal detector

Hidden artifacts are of different sizes and made from different materials. So the treasure hunter needs different operating modes and locating methods to find all of those hidden treasures at various depths under the ground surface. The eXp 4500 ground scanner is capable of the following operating modes:

OKM eXp 4500 Light (2014-2019)

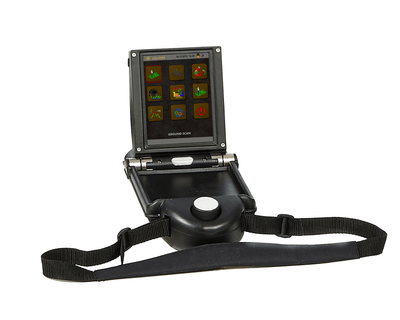

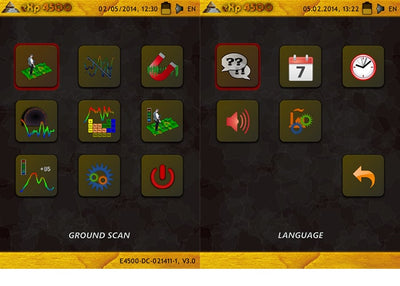

Select Scan Mode
OKM eXp 4500 Light (2014-2019)

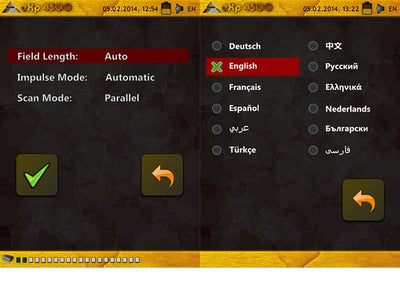

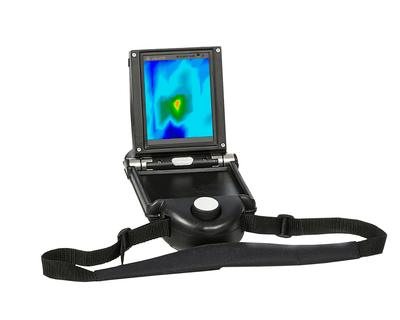

Ground Scan
OKM eXp 4500 Light (2014-2019)

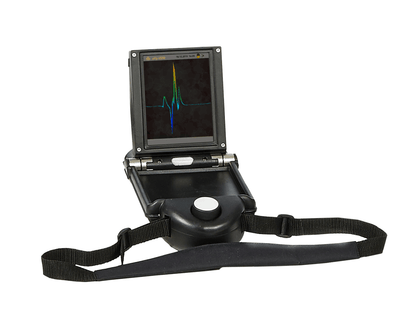

Mineral Scan
OKM eXp 4500 Light (2014-2019)

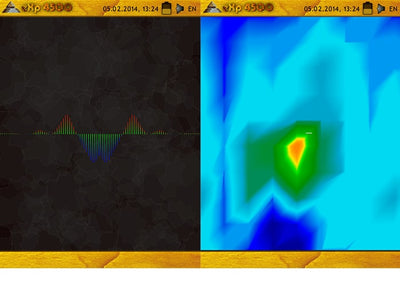

Magnetometer
OKM eXp 4500 Light (2014-2019)
Pinpointer
Archaeology
Archaeology
Cavity Detection
Cavity Detection
Explosive Ordnance Disposal Services
Explosive Ordnance Disposal Services
Militaria Detection
Militaria Detection
Natural Gold Prospection
Natural Gold Prospection
Treasure Hunting
Treasure Hunting
OKM Search Services
OKM Search Services
1x Control unit
1x Super Sensor
1x Telescopic rod assembly
1x 3D software ("Visualizer 3D") with data cable
1x Waterproof and shock resistant Pelican case
1x Bluetooth headphones
1x Joystick
2x Power Pack with charger and travel adapter
1x User’s manual

Control unit

  • Dimensions (H x W x D): 220 x 160 x 295 mm
  • Weight: approx. 1350 g
  • Input voltage (max.): 12 – 14.4 V DC, 22 W maximum
  • Processor / Main CPU: 800 MHz, INTEL i586-compatible
  • Data memory: 256 MB
  • Operating temperature: 0°C – 70°C
  • Storage temperature: –20°C – 60°C
  • Waterproof: No
  • Operating time: approx. 3 hours (delivered power supply full charged, 25°C)
  • Air humidity: 5% – 75%
  • Feedback: acoustic, visual
  • Protection Type: IP40
  • Working memory: 256 MB RAM

Data transmission

  • Technology: USB
  • Maximum Transfer Rate: 115200 Baud

Computer minimum requirements

  • CD-ROM drive: minimum 4x
  • Interface (Data transmission): USB
  • Free disk space: minimum 50 MB
  • Working memory (RAM): minimum 256 MB
  • Graphic card: minimum 128 MB, OpenGL-compatible
  • Processor: minimum 1.2 GHz
  • Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.
